配電阻晶體管(RET)

RET晶體管可降低處理和開發成本，同時最大程度縮小空間

Nexperia面向標準小信號數字應用提供豐富的單雙RET產品組合。

主要特性和優勢

  • 一個晶體管和兩個電阻集成在一個封裝中
  • 降低處理和庫存成本
  • 廣泛的100 mA產品范圍
  • 減少電路板空間
  • 500 mA產品組合
  • 縮短裝配時間

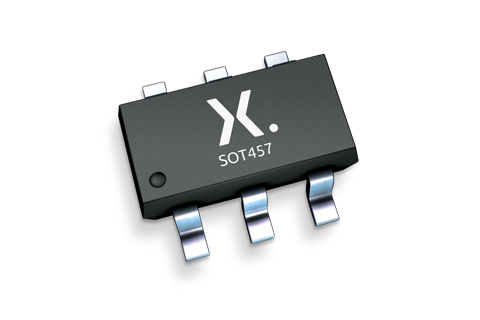

  • 采用SOT363/457封裝的完整雙RET系列
  • 簡化設計流程
  • 符合AEC-Q101標準
  • 減少焊點，提升系統可靠性

關鍵應用

  • 數字應用
  • 儀表盤
  • 發動機控制單元

參數搜索

Resistor-Equipped Transistors (RETs)
數據加載中，請稍候...
參數搜索不可用。

產品

型號 描述 狀態 快速訪問
PDTA124E (Automotive) PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 22 kΩ ACT
PDTA124EE EndOfLife
PDTA124EM 50 V, 100 mA PNP resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTA143X_TO_124XQB-Q series 50 V, 100 mA PNP resistor-equipped transistors ACT
PDTA114YQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA123JQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA124XQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143XQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143ZQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTB1xxxU series 500 mA, 50 V PNP resistor-equipped transistors ACT
PDTB113EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB123EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143EU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143XU 50 V, 500 mA PNP resistor-equipped transistor Production
PDTC115T series NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = open ACT
PDTC115TE NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = open EndOfLife
PDTC115TM NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = open Production
PDTC115TU NPN resistor-equipped transistors; R1 = 100 kOhm, R2 = open Production
PDTC143X_TO_124XQB-Q Series 50 V, 100 mA NPN resistor-equipped transistors ACT
PDTC114YQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC123JQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC124XQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143XQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143ZQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143X_TO_124XQC-Q Series 50 V, 100 mA NPN resistor-equipped transistors ACT
PDTC114YQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC123JQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC124XQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143XQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143ZQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143_114_124_144EQB-Q Series 50 V, 100 mA NPN resistor-equipped transistors ACT
PDTC114EQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC124EQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143EQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC144EQB-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143_114_124_144EQC-Q Series 50 V, 100 mA NPN resistor-equipped transistors ACT
PDTC114EQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC124EQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC143EQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC144EQC-Q 50 V, 100 mA NPN resistor-equipped transistors Production
PDTC144T series NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = open ACT
PDTC144TM NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PDTC144TT NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PDTC144TU NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PDTD1xxxT series 500 mA, 50 V NPN resistor-equipped transistors ACT
PDTD114ET 50 V, 500 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTD143ET-Q 500 mA, 50 V NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7?kΩ Production
PDTD143XT 50 V, 500 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?10?kΩ Production
PDTD1xxxU series 500 mA, 50 V NPN resistor-equipped transistors ACT
PDTD113EU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD113ZU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD114EU-Q 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD123EU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD123YU 50 V, 500 mA NPN resistor-equipped transistor Production
PDTD143EU-Q 50 V, 500 mA NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PDTD143XU 50 V, 500 mA NPN resistor-equipped transistor Production
PEMB10; PUMB10 (Automotive) ACT
PUMB10 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PEMB16; PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm ACT
PUMB16 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = 47 kOhm Production
PEMB19; PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open ACT
PUMB19 PNP/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PEMH7; PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open ACT
PUMH7 NPN/NPN resistor-equipped transistors; R1 = 4.7 kOhm, R2 = open Production
NHDTA114ET-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA114EU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA114YT-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA114YU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA123JT-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA123JU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA124ET-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA124EU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA143ZT-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA143ZU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA144ET-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTA144EU-Q 80 V, 100 mA PNP resistor-equipped transistors Production
NHDTC114ET-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC114EU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC114YT-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC114YU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC123JT-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC123JU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC124ET-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC124EU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC143ZT-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC143ZU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC144ET-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHDTC144EU-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHUMB1 80 V, 100 mA PNP/PNP resistor-equipped double transistors Qualification
NHUMB10-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB11 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB13-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB2 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMB9-Q 80 V, 100 mA PNP/PNP resistor-equipped double transistors Production
NHUMD10-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD12-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD13-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD2-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD3-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMD9-Q 80 V, 100 mA NPN/PNP resistor-equipped double transistors Production
NHUMH1-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH10-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHUMH11-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH13-Q 80 V, 100 mA NPN resistor-equipped transistors Production
NHUMH2-Q 80 V, 100 mA NPN/NPN resistor-equipped double transistors Production
NHUMH9-Q 80 V, 100 mA NPN resistor-equipped transistors Production
PDTA113EE PNP resistor-equipped transistors; R1 = 1 kOhm, R2 = 1 kOhm EndOfLife
PDTA113EM PNP resistor-equipped transistors; R1 = 1 kOhm, R2 = 1 kOhm Production
PDTA113EMB PNP resistor-equipped transistor; R1 = 1 kΩ, R2 = 1 kΩ Production
PDTA113ET PNP resistor-equipped transistors; R1 = 1 kOhm, R2 = 1 kOhm Production
PDTA113EU PNP resistor-equipped transistors; R1 = 1 kOhm, R2 = 1 kOhm Production
PDTA113ZE EndOfLife
PDTA113ZM-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?1?k?,?R2?=?10 k? Production
PDTA113ZMB PNP resistor-equipped transistor; R1 = 1 kΩ, R2 = 10 kΩ Production
PDTA113ZT-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?1?k?,?R2?=?10 k? Production
PDTA113ZU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1 = 1 k?, R2 = 10 k? Production
PDTA114EE PNP resistor-equipped transistors; R1 = 10 k?; R2 = 10 k? EndOfLife
PDTA114EM 50 V, 100 mA PNP resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTA114EMB 50 V, 100 mA PNP resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTA114EQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA114EQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA114ET-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTA114EU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTA114TE PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open EndOfLife
PDTA114TM PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PDTA114TMB PNP resistor-equipped transistor; R1 = 10 kΩ, R2 = open Production
PDTA114TT PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PDTA114TU PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PDTA114YE EndOfLife
PDTA114YM PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 47 kΩ Production
PDTA114YMB PNP resistor-equipped transistor; R1 = 10 kΩ, R2 = 47 kΩ Production
PDTA114YQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA114YT-Q 50 V, 100 mA PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 47 kΩ Production
PDTA114YU-Q PNP resistor-equipped transistors; R1 = 10 kΩ, R2 = 47 kΩ Production
PDTA115EE PNP resistor-equipped transistors; R1 = 100 kOhm, R2 = 100 kOhm EndOfLife
PDTA115EMB PNP resistor-equipped transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
PDTA115ET PNP resistor-equipped transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
PDTA115EU-Q PNP resistor-equipped transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
PDTA115TE PNP resistor-equipped transistors; R1 = 100 kOhm, R2 = open EndOfLife
PDTA115TM PNP resistor-equipped transistors; R1 = 100 kOhm, R2 = open Production
PDTA115TMB PNP resistor-equipped transistor; R1 = 100 kΩ, R2 = open Production
PDTA115TT PNP resistor-equipped transistors; R1 = 100 kOhm, R2 = open Production
PDTA115TU PNP resistor-equipped transistors; R1 = 100 kOhm, R2 = open Production
PDTA123EE PNP resistor-equipped transistors; R1 = 2.2 kOhm, R2 = 2.2 kOhm EndOfLife
PDTA123EM PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTA123EMB PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTA123ET PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTA123EU-Q PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTA123JE EndOfLife
PDTA123JM PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PDTA123JMB PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PDTA123JQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA123JT PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PDTA123JU PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PDTA123TMB PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = open Production
PDTA123TT PNP resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PDTA123YMB PNP resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 10 kΩ Production
PDTA123YQB-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?2.2?k?,?R2:?10?k? Production
PDTA124EK EndOfLife
PDTA124EMB PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ Production
PDTA124EQA 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA124EQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA124EQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA124ES EndOfLife
PDTA124ET-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTA124EU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTA124TMB PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = open Production
PDTA124XMB PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 47 kΩ Production
PDTA124XQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA124XT-Q PNP resistor-equipped transistor; R1 = 22 kΩ, R2 = 47 kΩ Production
PDTA143EMB PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PDTA143EQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143EQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143TMB 50 V, 100 mA PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = open Production
PDTA143TU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?open Production
PDTA143XM-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?10 kΩ Production
PDTA143XMB PNP resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PDTA143XQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143ZMB PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PDTA143ZQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA143ZT-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?47 ?kΩ Production
PDTA143ZU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?47 ?kΩ Production
PDTA144EE PNP resistor-equipped transistors; R1 = 47 kΩ, R2 = 47 kΩ EndOfLife
PDTA144EM-Q PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PDTA144EMB PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PDTA144EQB-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA144EQC-Q 50 V, 100 mA PNP resistor-equipped transistors Production
PDTA144ET-Q PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PDTA144EU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PDTA144TMB PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = open Production
PDTA144VMB PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = 10 kΩ Production
PDTA144WMB PNP resistor-equipped transistor; R1 = 47 kΩ, R2 = 22 kΩ Production
PDTB113EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB113ZQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB114EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB114ET 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB114EU-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB123EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB123YQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB123YT-Q 50 V, 500 mA PNP resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PDTB123YU-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143EQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB143ET-Q 50 V, 500 mA PNP resistor-equipped transistor Production
PDTB143XQA 50 V, 500 mA PNP resistor-equipped transistors Production
PDTB143XT 50 V, 500 mA PNP resistor-equipped transistor Production
PDTC114EM-Q 50 V, 100 mA NPN resistor-equipped transistors;?R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTC114EMB NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = 10 kΩ Production
PDTC114ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTC114EU-Q NPN resistor-equipped transistors;?R1?=?10?kΩ,?R2?=?10?kΩ Production
PDTC114TMB NPN resistor-equipped transistor; R1 = 10 kΩ, R2 = open Production
PDTC114YT-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PDTC114YU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PDTC115EMB NPN resistor-equipped transistor; R1 = 100 kΩ, R2 = 100 kΩ Production
PDTC115ET 50 V, 20 mA NPN resistor-equipped transistor; R1?=?100?kΩ,?R2?=?100?kΩ Production
PDTC115EU-Q 50 V, 20 mA NPN resistor-equipped transistor; R1?=?100?kOhm,?R2?=?100?kOhm Production
PDTC115TMB NPN resistor-equipped transistor; R1 = 100 kΩ, R2 = open Production
PDTC123EM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?2.2?kΩ Production
PDTC123EMB NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTC123ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?2.2?kΩ Production
PDTC123EU 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?2.2?kΩ Production
PDTC123JM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PDTC123JMB NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 47 kΩ Production
PDTC123JT-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PDTC123JU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PDTC123TM NPN resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PDTC123TMB NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = open Production
PDTC123TU NPN resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PDTC123YM-Q NPN resistor-equipped transistor; R1 = 2.2 k?, R2 = 10 k? Production
PDTC123YMB NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 10 kΩ Production
PDTC123YQB-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?2.2?k?,?R2:?10?k? Production
PDTC123YT-Q NPN resistor-equipped transistor; R1 = 2.2 k?, R2 = 10 k? Production
PDTC123YU-Q NPN resistor-equipped transistor; R1 = 2.2 k?, R2 = 10 k? Production
PDTC124EM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTC124EMB NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = 22 kΩ Production
PDTC124ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTC124EU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PDTC124TM NPN resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PDTC124TMB NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = open Production
PDTC124TT NPN resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PDTC124TU NPN resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PDTC124XM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?47?kΩ Production
PDTC124XMB NPN resistor-equipped transistor; R1 = 22 kΩ, R2 = 47 kΩ Production
PDTC124XT-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?47?kΩ Production
PDTC124XU 50 V, 100 mA NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?47?kΩ Production
PDTC143EM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7 ?kΩ Production
PDTC143EMB NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PDTC143ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7 ?kΩ Production
PDTC143EU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?4.7 ?kΩ Production
PDTC143TM 50 V, 100 mA NPN resistor-equipped transistor;?R1?=?4.7?kΩ,?R2?=?open Production
PDTC143TMB 50 V, 100 mA NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = open Production
PDTC143TT-Q 50 V, 100 mA NPN resistor-equipped transistors;?R1?=?4.7?kΩ,?R2?=?open Production
PDTC143TU 50 V, 100 mA NPN resistor-equipped transistor;?R1?=?4.7?kΩ,?R2?=?open Production
PDTC143XM NPN resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PDTC143XMB NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PDTC143XT NPN resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PDTC143XU NPN resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PDTC143ZM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?47 ?kΩ Production
PDTC143ZMB NPN resistor-equipped transistor; R1 = 4.7 kΩ, R2 = 47 kΩ Production
PDTC143ZT-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?47 ?kΩ Production
PDTC143ZU-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?47 ?kΩ Production
PDTC144EM 50 V, 100 mA NPN resistor-equipped transistor; R1?=?47?kΩ,?R2?=?47 kΩ Production
PDTC144EMB 50 V, 100 mA NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = 47 kΩ Production
PDTC144ET-Q 50 V, 100 mA NPN resistor-equipped transistor; R1?=?47?kΩ,?R2?=?47 kΩ Production
PDTC144EU-Q 50 V, 100 mA PNP resistor-equipped transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PDTC144TMB NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = open Production
PDTC144VM NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 10 kOhm Production
PDTC144VMB NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = 10 kΩ Production
PDTC144VT NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 10 kOhm Production
PDTC144VU NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 10 kOhm Production
PDTC144WM 50 V, 100 mA NPN resistor-equipped transistor;?R1?=?47?kΩ,?R2?=?22 kΩ Production
PDTC144WMB NPN resistor-equipped transistor; R1 = 47 kΩ, R2 = 22 kΩ Production
PDTC144WT-Q 50 V, 100 mA NPN resistor-equipped transistor;?R1?=?47?kΩ,?R2?=?22 kΩ Production
PDTC144WU 50 V, 100 mA NPN resistor-equipped transistor;?R1?=?47?kΩ,?R2?=?22 kΩ Production
PDTD113ET-Q 50 V, 500 mA NPN resistor-equipped transistor; R1?=?1 k?,?R2?=?1?k? Production
PDTD113ZT-Q NPN 500 mA, 50 V resistor-equipped transistor; R1?=?1?kΩ,?R2?=?10?kΩ Production
PDTD123ET-Q 50 V, 500 mA NPN resistor-equipped transistor; R1 = 2.2 kΩ, R2 = 2.2 kΩ Production
PDTD123TT NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PDTD123YK NPN 500 mA, 50 V resistor-equipped transistors; R1 = 2.2 kOhm, R2 = 10 kOhm EndOfLife
PDTD123YT-Q 50 V, 500 mA NPN resistor-equipped transistor; R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMC31-Q 500 mA, 50 V NPN/PNP double resistor-equipped transistor; R1 = 1 k?, R2 = 10 k? Production
PIMC31PAS-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMC32-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMC32PAS-Q 50 V, 500 mA NPN/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
PIMD2 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PIMN31 500 mA, 50 V NPN/NPN double resistor-equipped transistor; R1 = 1 kOhm, R2 = 10 kOhm Production
PIMN31PAS-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMN32-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMN32PAS-Q 50 V, 500 mA NPN/NPN Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
PIMP31-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?1?kΩ,?R2?=?10?kΩ Production
PIMP31PAS-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 1?kΩ,?R2?=?10 kΩ Production
PIMP32-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor (RET); R1?=?2.2?kΩ,?R2?=?10?kΩ Production
PIMP32PAS-Q 50 V, 500 mA PNP/PNP Resistor-Equipped double Transistor; R1?= 2.2?kΩ,?R2?=?10 kΩ Production
PQMB11 PNP/PNP resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMD10 NPN/PNP resistor-equipped transistors; R1?=?2.2?k?,?R2?=?47?k? Production
PQMD12 NPN/PNP resistor-equipped transistors; R1?=?47?kΩ,?R2?=?47?kΩ Production
PQMD13 NPN/PNP resistor-equipped transistors; R1?=?4.7?k?,?R2?=?47?k? Production
PQMD16 NPN/PNP resistor-equipped transistors; R1?=?22?k?,?R2?=?47?k? Production
PQMD2 NPN/PNP resistor-equipped transistors; R1?=?22?kΩ,?R2?=?22?kΩ Production
PQMD3 NPN/PNP resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMH10 NPN/NPN resistor-equipped transistors; R1?=?2.2?k?,?R2?=?47?k? Production
PQMH11 NPN/NPN resistor-equipped transistors; R1?=?10?k?,?R2?=?10?k? Production
PQMH13-Q NPN/NPN resistor-equipped double transistor; R1?=?4.7?k?,?R2?=?47?k? Production
PQMH2 NPN/NPN resistor-equipped transistors; R1?=?47?k?,?R2?=?47?k? Production
PQMH9 NPN/NPN resistor-equipped transistors; R1?=?10?k?,?R2?=?47?k? Production
PRMB11 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistors (RET) Production
PRMD10 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD12 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD13 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD2 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMD3 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistors (RET) Production
PRMH10 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH11 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH13 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH2 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PRMH9 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistors (RET) Production
PUMB1 PNP/PNP resistor-equipped transistors; R1 = 22 kΩ, R2 = 22 kΩ Production
PUMB11-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistors; R1?=?10?k?,?R2?=?10?k? Production
PUMB13-Q PNP/PNP resistor-equipped double transistors; R1?=?4.7?kΩ,?R2?=?47?kΩ Production
PUMB14 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = open Production
PUMB15 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMB17 PNP/PNP resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMB18 PNP/PNP resistor-equipped transistors; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PUMB2-Q 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PUMB20 50 V, 100 mA PNP/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?2.2?kΩ Production
PUMB24 50 V, 20 mA PNP/PNP resistor-equipped transistor; R1?=?100?k?,?R2?=?100?k? Production
PUMB3 50 V, 100 mA PNP/PNP resistor-equipped transistor; R1?=?4.7?kΩ,?R2?=?open Production
PUMB30 PNP/PNP double resistor-equipped transistors; R1 = 2.2 kOhm, R2 = open Production
PUMB3H-Q 50 V, 100 mA PNP/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMB4 PNP/PNP resistor-equipped transistors; R1 = 10 kOhm, R2 = open Production
PUMB9 PNP/PNP double Resistor-Equipped Transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PUMD10-Q NPN/PNP double Resistor-Equipped Transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMD12-Q NPN/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47 kΩ Production
PUMD13-Q NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?47?kΩ Production
PUMD14 50 V, 100 mA NPN/PNP resistor-equipped transistor; R1?=?47?k?,?R2?=?open Production
PUMD15-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?4.7?kΩ Production
PUMD16-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?47?kΩ Production
PUMD17-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 47 k?, R2 = 22 k? Production
PUMD18 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?4.7?kΩ,?R2?=?10?kΩ Production
PUMD19 NPN/PNP resistor-equipped transistors; R1 = 22 kOhm, R2 = open Production
PUMD2-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PUMD20 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1 = 2.2 k?, R2 = 2.2 k? Production
PUMD24-Q 50 V, 20 mA NPN/PNP resistor-equipped double transistor; R1?=?100?kOhm, R2?=?100 kOhm Production
PUMD3-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PUMD30 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?open Production
PUMD4-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?open Production
PUMD48-Q NPN/PNP resistor-equipped double transistor; R1?=?47?kΩ,?R2?=?47?kΩ?and?R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMD6-Q 50 V, 100 mA NPN/PNP Resistor-Equipped Transistor; R1?=?4.7?kΩ,?R2?=?open Production
PUMD6H-Q 50 V, 100 mA NPN/PNP Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMD9-Q 50 V, 100 mA NPN/PNP resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?47?kΩ Production
PUMF11 NPN resistor-equipped transistor; PNP general purpose transistor EndOfLife
PUMF12 PNP general purpose transistor; NPN resistor-equipped transistor EndOfLife
PUMH1-Q NPN/NPN resistor-equipped double transistor; R1?=?22?kΩ,?R2?=?22?kΩ Production
PUMH10-Q NPN/NPN resistor-equipped double transistor; R1?=?2.2?kΩ,?R2?=?47?kΩ Production
PUMH11-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1?=?10?kΩ,?R2?=?10?kΩ Production
PUMH13-Q NPN/NPN double Resistor-Equipped Transistor (RET); R1=?4.7?kΩ,?R2?=?47?kΩ Production
PUMH14-Q 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?47?kΩ,?R2?=?open Production
PUMH15-Q NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 4.7 kΩ Production
PUMH16 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?47 kΩ Production
PUMH17 NPN/NPN resistor-equipped transistors; R1 = 47 kOhm, R2 = 22 kOhm Production
PUMH18 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 4.7 kΩ, R2 = 10 kΩ Production
PUMH19 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?22?kΩ,?R2?=?open Production
PUMH2-Q 50 V, 100 mA NPN/NPN resistor-equipped double?transistor; R1?=?47?kΩ,?R2?=?47?kΩ Production
PUMH20-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1 = 2.2 k?, R2 = 2.2 k? Production
PUMH24-Q NPN/NPN resistor-equipped transistor; R1 = 100 k?, R2 = 100 k? Production
PUMH30-Q NPN/NPN resistor-equipped double transistor; R1 = 2.2 kΩ, R2 = open Production
PUMH4 50 V, 100 mA NPN/NPN resistor-equipped transistor; R1?=?10?kΩ,?R2?=?open Production
PUMH7H-Q 50 V, 100 mA NPN/NPN Resistor-Equipped double Transistor; R1 = 4.7 kΩ, R2 = open Production
PUMH9-Q 50 V, 100 mA NPN/NPN resistor-equipped double transistor; R1?=?10?k?,?R2?=?47?k? Production
PUML1 50 V, 200 mA NPN general-purpose transistor/100 mA NPN resistor-equipped transistor EndOfLife
Visit our documentation center for all documentation

Application note (1)
文件名稱 標題 類型 日期
AN90024.pdf Resistor Equipped Transistors (RETs): Key parameters and application insights Application note 2021-08-03

Marcom graphics (1)
文件名稱 標題 類型 日期
DFN1006B-3_SOT883B_mk.png plastic, leadless ultra small plastic package; 3 solder lands; 0.35 mm pitch; 1 mm x 0.6 mm x 0.37 mm body Marcom graphics 2017-01-28

White paper (1)
文件名稱 標題 類型 日期
Nexperia_document_whitepaper_RET_devices_2021.pdf Nexperia document whitepaper RET devices 2021 White paper 2022-09-21

如果您有支持方面的疑問，請告知我們。如需獲得設計支持，請告知我們并填寫技術支持表格，我們會盡快回復您。

請訪問我們的社區論壇或聯系我們。


交叉參考
