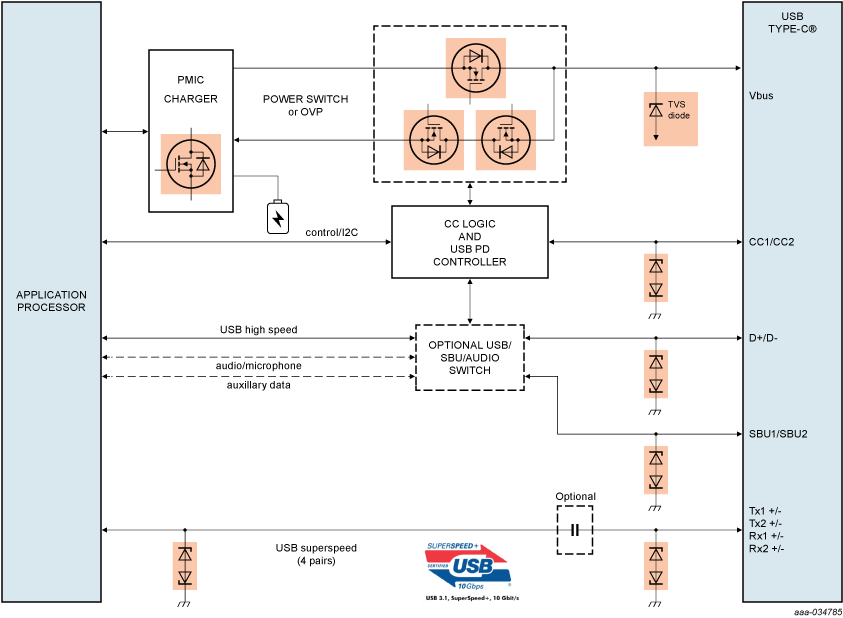

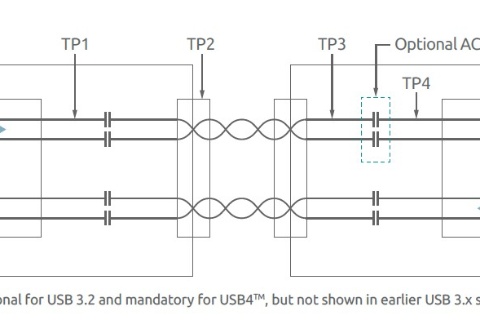

Block diagram
Highlighted components are Nexperia focus products
Protection products
Power delivery products
Design challenges
- The extra performance and convenience offered by USB-C makes for more complex circuitry on the PCB
- USB PD via Type-C connectors allows for various power profiles up to 100 W, requires power control switches to be capable of withstanding 20 V or higher
- Low on-resistance is a pre-requisite to minimise energy loss, unwanted thermal challenges, and to comply with USB minimum-voltage regulations
- Designers need to pay careful attention to the trade-off between TVS terminal capacitance (Ct) and the available ESD protection level - to avoid data distortion while ensuring system robustness
