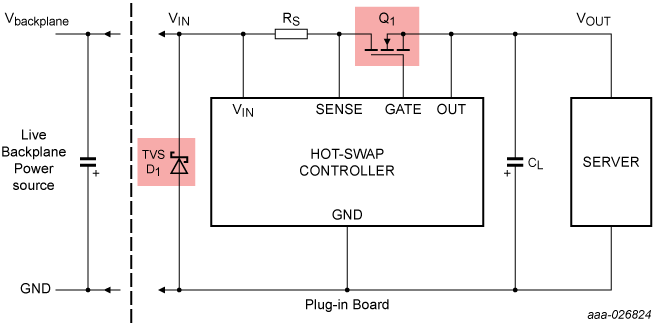

功能框圖
Highlighted components are Nexperia focus products
產品
設計考慮因素
- 當電路板插入運行中的系統時，重要的是要謹慎地控制沖擊電流，以保護電路板上的器件并確保系統的其他部分不會遭遇電源中斷。
- 為高效可靠地控制該電流，需要使用具有出色線性模式性能和寬安全工作區域(SOA)的MOSFET
- 一旦安全地完成了替換電路板的安裝，MOSFET便會轉為完全開啟。在這種工作模式下，最重要的是低RDS(on)值，它可保證溫度盡可能的低且系統效率最高
Nexperia實際應用

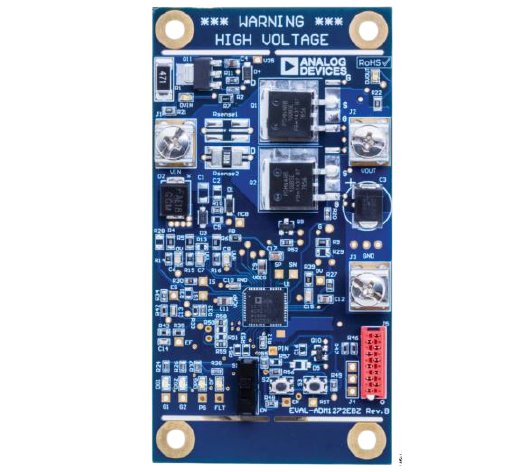

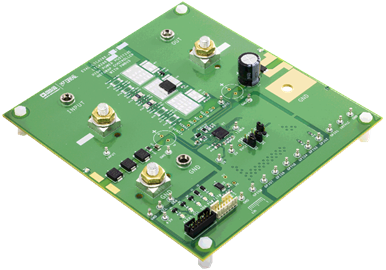

“評估集成PMBus的ADM1272高壓正熱插拔控制器及數字功率監控器”中引用的PSMN4R8-100BSE
Nexperia實際應用
“評估集成PMBus的ADM1272高壓正熱插拔控制器及數字功率監控器”中引用的PSMN4R8-100BSE

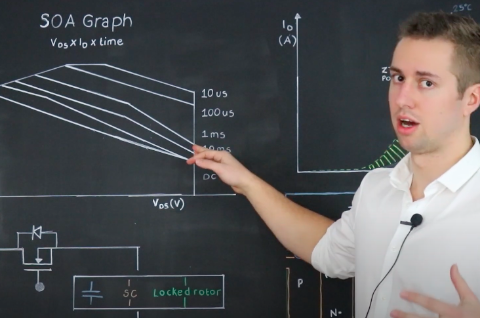

The importance of SOA - Quick Learning
When a MOSFET is selected for a high power designs, engineers often select a device based on its on-resistance. Lower on-resistance results in MOSFETs with lower power loss, which in turn indicates less heating and safer operation for the device.
