主要特性和優勢
- 寬電源電壓范圍：3.0?V至6.0?V
- 最高頻率達到17?MHz（典型值）
- 低功耗
- 出色的VCO頻率線性度
- 相位比較器的選擇
- 用戶可配置
關鍵應用
- FM調制和解調
- 頻率合成與倍頻
- 時鐘恢復
- 數據同步和調節
- 電壓-頻率轉換
- 電機速度控制接口
參數搜索
Phase Locked Loops
數據加載中，請稍候...參數搜索不可用。
產品
| 型號 | 描述 | 狀態 | 快速訪問 |
|---|---|---|---|
| 74HC4046A; 74HCT4046A | Phase-locked loop with VCO | ACT |
|
| 74HC4046AD | Phase-locked loop with VCO | Production | |
| 74HC4046ADB | Phase-locked loop with VCO | EndOfLife | |
| 74HC4046APW | Phase-locked loop with VCO | Production | |
| 74HCT4046AD | Phase-locked loop with VCO | Production | |
| 74HCT4046ADB | Phase-locked loop with VCO | EndOfLife | |
| 74HCT4046APW | Phase-locked loop with VCO | Production | |
| 74HCT9046A | PLL with band gap controlled VCO | ACT |
|
| 74HCT9046AD | PLL with band gap controlled VCO | EndOfLife | |
| 74HCT9046APW | PLL with band gap controlled VCO | EndOfLife | |
| HEF4046B | Phase-locked loop | ACT |
|
| HEF4046BT | Phase-locked loop | Production | |
| 74HCT4046AN | EndOfLife |
Visit our documentation center for all documentation
Marcom graphics (1) |
|||
|---|---|---|---|
| 文件名稱 | 標題 | 類型 | 日期 |

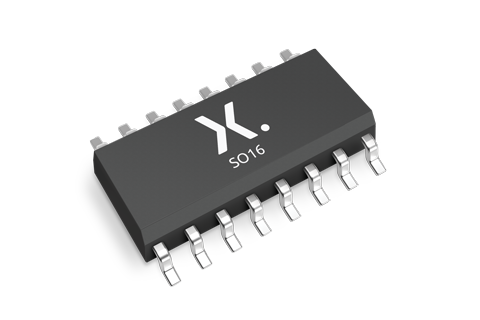

| SO16_SOT109-1_mk.png | plastic, small outline package; 16 leads; 1.27 mm pitch; 9.9 mm x 3.9 mm x 1.35 mm body | Marcom graphics | 2017-01-28 |
Selection guide (1) |
|||
| 文件名稱 | 標題 | 類型 | 日期 |
| Nexperia_Selection_guide_2023.pdf | Nexperia Selection Guide 2023 | Selection guide | 2023-05-10 |
